Cognep Diamond Microscope (Cognep)

Main Features

Lighting Examination of cut, color, inclusions optics User a high quality
stereo zoom microscope to produce binocular image.

Illumination

A halogen lamp with reflactor coupled with reflaction system OR 32 LEDs ensures

sharp and focused light on the diamond under examination which investgate the color, cut and inclusions.

Darkfield illumination

he dark field illumination is specially designed for Analyzing the inside characteristics

of the Diamond Aset of mirrors focused the light from all directions on the centre of stone. In this way, the smallest inclusions become visible.

Overhead LED  Illumination



LED (Light Emitting Diode) illumination which provides a brighter white light than the standard halogen and TL lighting.

LED illumination is idea for helping the grader see inclusions and other impurities at diamond. It is useful for studying

clarity, cut grade and even colour.

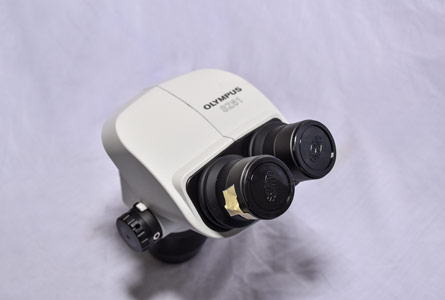

Olympus

Magnification 0.67x 45x

Working Distance: 100mm

Viewing angle: 45

Magnification: 10x

Manipulation

By vacuum system, Diamond is hold on needle with pencil which move and rotate diamond, with maximum flexibility

and minimum Obstruction to the view.

Technical  SpecificationsPower supply: 230V

Frequency: 50Hz

Weight: 12kg

Surface of use: 19 *40cm (wxd)
